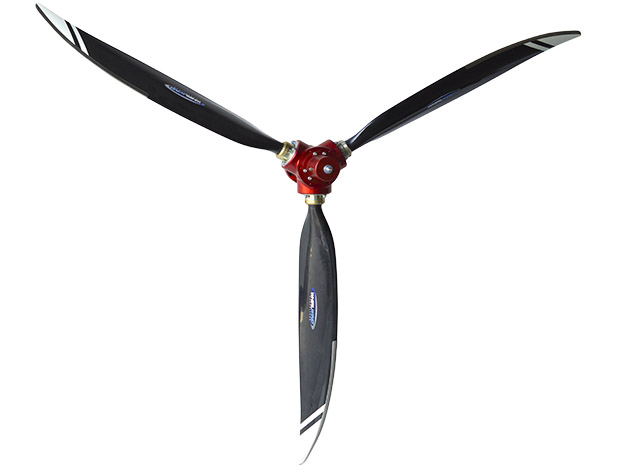

FP hub + Warp Drive 70C blades
FP hub + Warp Drive 70C blades
[VPH5-TE-WD-70C]
Available in 68″, 70″, 72″ Diameter
Electric servomotor 12 Vdc , 22W
Pitch control:
– manual, by pitch indicator gauge
– semi-automatic, by constant rpm governor
– fully automatic, by constant rpm governor under m.a.p. control.
Manual set-up of blade pitch in case of electrical failure.
Mechanical anti-reverse stop system.

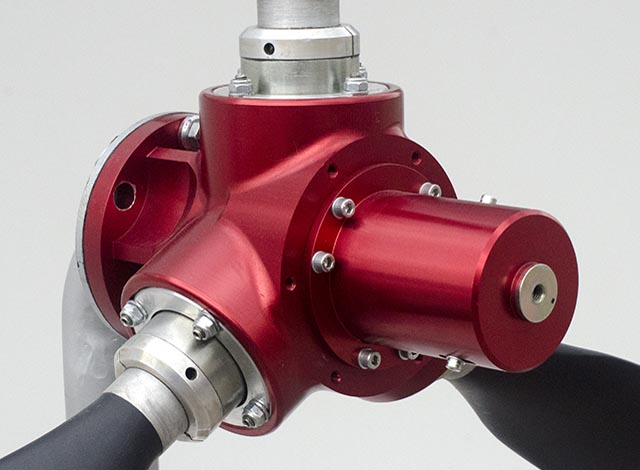

Hub machined from aluminium alloy rod and blade shank in high strength steel.
Excellent performances over the entire flight envelope of the aircraft (take-off, climb, cruise and top speed). High flight comfort, high quality finishing, low moment of inertia.
Installation of the our propeller is reduced to a very simple operation sequency:
> Installation of brushes and slip ring on the engine gear box
> Tightening of the n. 6 bolts on the propeller/shaft flange
> Mounting of each blade in its numbered seat.
| Propeller diameter: | 1780 mm (70" version) |
|---|---|
| Weight : | 8,4 kg |
| Moment of inertia: | 4.900 kg*cm2 |
| Pitch range: | from 10° to 40°, adjustable |
| Pitch change speed: | 3,5 °/sec |
| Pitch reading: | by fp electronic governor |
| Applications: | Aircraft powered by Rotax 912, 912S, 914 |
| Available versions: | ractor and pusher |
